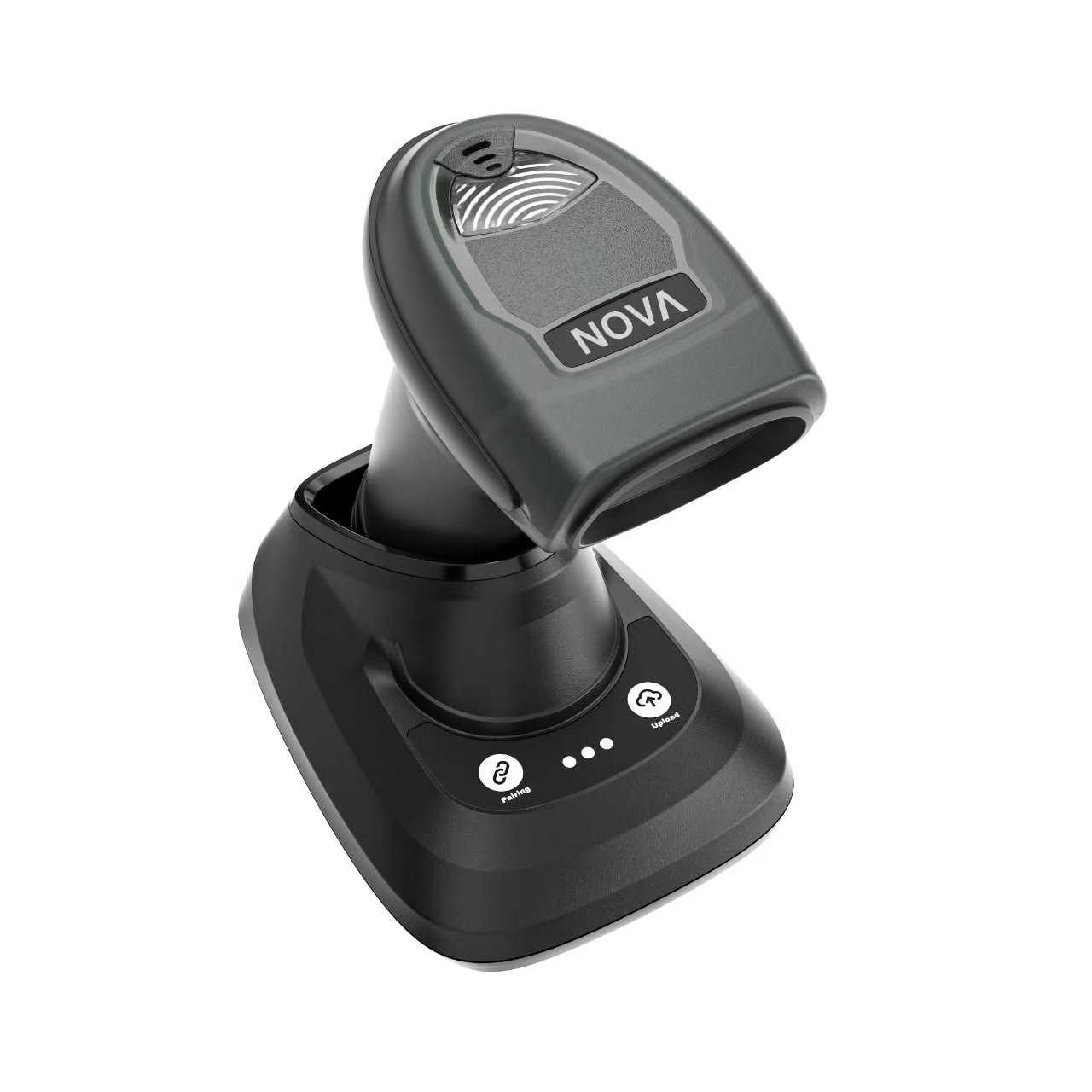

NOVA 201CR

Handheld Scanner | NOVA

NOVA 201CR

  • Scan Type: 1D & 2D Barcode Scanner
  • Connection: 3-in-1 (Charging Cradle, Bluetooth HID & USB Wired Type-B Cable; optional USB Dongle)
  • Transmission Range: Up to 100 m (2.4G) / 40 m (Bluetooth HID) in open air
  • Scan Mode: Handheld (Manual) / Hands-free (Automatic)
  • Scanning Speed: Up to 60 FPS
  • Image Sensor: 1288 × 728 CMOS (Rolling shutter)
  • Scan Accuracy: ≥ 4 mil
  • Print Contrast: ≥ 25%
  • Scan Distance:
  • 50–300 mm @ EAN 13 mil (PCS-100%)
  • 50–160 mm @ Code 39 5 mil (PCS-100%)
  • 40–250 mm @ Data Matrix 13 mil (PCS-100%)
  • Field of View: 40° Horizontal / 31° Vertical
  • Scan Angle:
  • Tilt: 360°
  • Pitch: ±55°
  • Roll: ±70°
  • Aiming Light: Red LED
  • Illumination: White LED
  • Indicator: Red, Blue & Green LED lights, Buzzer & Motor vibration
  • Memory Capacity: 380,000 bytes (up to 380,000 EAN-13 characters)
  • Battery Capacity: 2000 mAh
  • Charging Mode: Wire charging / Cradle seat charging
  • Charging Time: 5 hours
  • Working Time: 12 hours continuous scanning
  • Operating System: Windows, iOS & Android
  • Work Frequency: 2.400 GHz – 2.480 GHz ISM
  • Power Input: 5V DC ±5%
  • Working Current: 400 mA
  • Scanner Dimensions: 173 × 66 × 94 mm
  • Scanner Weight: 200 g
  • Cradle Dimensions: 122 × 75 × 94 mm
  • Cradle Weight: 134.5 g (without cable)
  • Cradle Features: One-key pairing, one-key data upload, automatic charging
  • Cable: Standard 1.5 m straight cable
  • Operating Temperature: -10°C to +50°C
  • Storage Temperature: -20°C to +60°C
  • Operating Humidity: 5%–95% RH, non-condensing
  • Electrostatic Protection: ±8 kV direct discharge
  • Drop Resistance: 1.6 m
  • Protection Rating: IP42
  • Ambient Light: 0 – 100,000 lux
  • Firmware Update: Online dual firmware upgrade (wireless & decoder)
  • Material: ABS + PC + TPU
  • Certifications: CE (EN 55032-2015, EN 55035:2017), RoHS, BIS, EN62368-1:2014-A11:2017, FCC PART 15 CLASS B
ENQUIRY NOW

Nova 201CR Brochure
