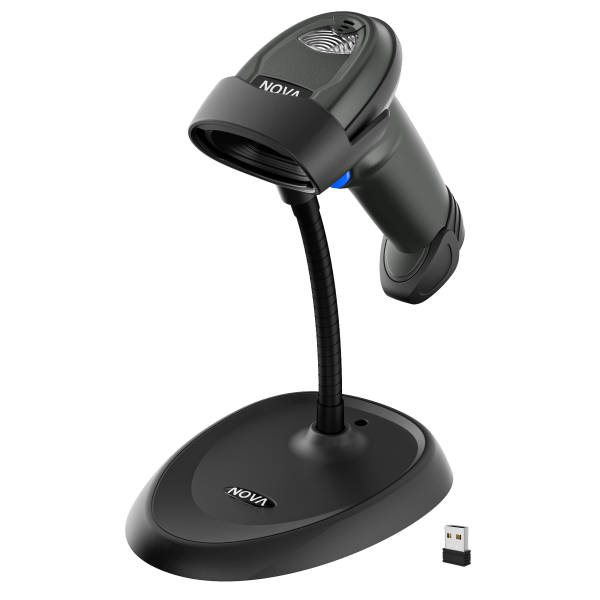

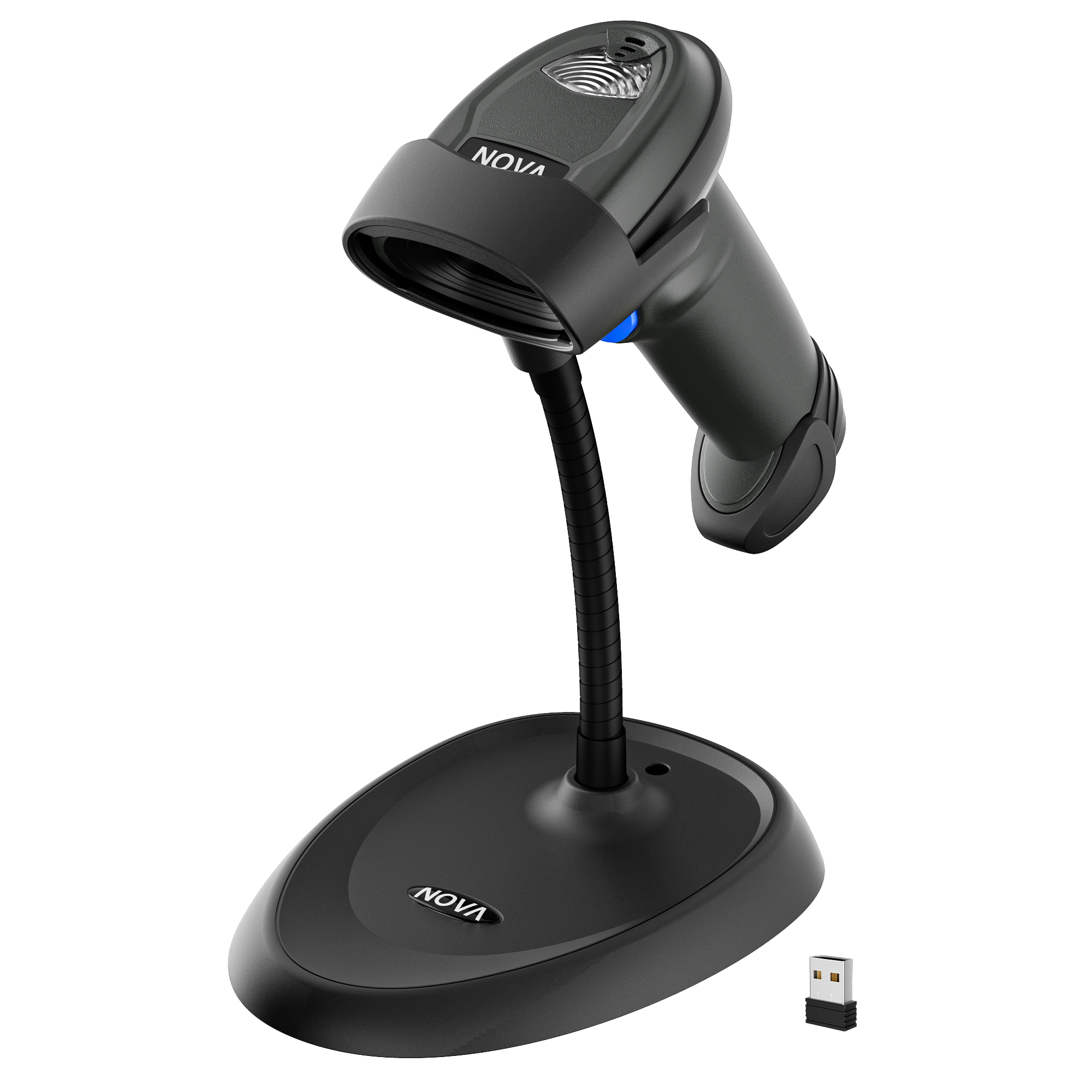

NOVA 201B

Handheld Scanner | NOVA

NOVA 201B

  • Scan Type: 1D & 2D Barcode Scanner
  • Connection: 3-in-1 (2.4G Wireless, Bluetooth HID/BLE/SPP & USB Wired Type-B)
  • Transmission Range: Up to 100 m (2.4G) / 40 m (Bluetooth) in open air
  • Scan Mode: Handheld (Manual) / Hands-free (Automatic)
  • Scanning Speed: Up to 60 FPS
  • Image Sensor: 1288 × 728 CMOS (Rolling shutter)
  • Scan Accuracy: ≥ 4 mil @ Code39
  • Print Contrast: ≥ 20%
  • Scan Distance:
  • 50–300 mm @ EAN 13 mil (PCS-100%)
  • 50–160 mm @ Code39 5 mil (PCS-100%)
  • 40–250 mm @ Data Matrix 13 mil (PCS-100%)
  • Field of View: 40° Horizontal / 31° Vertical
  • Scan Angle:
  • Pitch: 360°
  • Roll: ±55°
  • Yaw: ±70°
  • Aiming Light: Red LED
  • Illumination: White LED
  • Indicator: Green LED light, Buzzer & Motor vibration
  • Memory Capacity: 380,000 bytes (up to 380,000 EAN-13 characters)
  • Battery Capacity: 2000 mAh
  • Charging Time: 5 hours (Wire charging)
  • Working Time: 12 hours continuous scanning (up to 60 days standby)
  • Operating System: Windows, iOS & Android
  • Work Frequency: 2.400 GHz – 2.480 GHz ISM
  • Power Input: 5V DC ±5%
  • Working Current: 310 mA
  • Standby Current: 90 mA
  • Dimensions: 173 × 66 × 94 mm
  • Weight: 201 g (with mini adapter)
  • Operating Temperature: -10°C to +50°C
  • Storage Temperature: -20°C to +60°C
  • Operating Humidity: 5%–95% RH, non-condensing
  • Drop Resistance: 1.6 m
  • Protection Rating: IP42
  • Ambient Light: 0 – 100,000 lux
  • Firmware Update: Online firmware upgrade (wireless & decoder)
  • Material: ABS + PC + TPU
  • Certifications: CE (EN 55032-2015, EN 55035-2017), RoHS, BIS, EN62368-1:2014-A11:2017, FCC PART 15 CLASS B
ENQUIRY NOW

Nova 201B Brochure
