Chainway R6

UHF RFID Sled Reader | Chainway

Chainway R6

  • RFID Engine: Impinj E710 / R2000
  • Protocols: EPC C1 GEN2 / ISO18000-6C
  • Frequency: 865–868 / 902–928 / 920–925 MHz
  • Output Power: 1W (30 dBm, adjustable) / Optional 2W (33 dBm)
  • Read Range: Up to 31 m (tag dependent)
  • Read Rate: 1300+ tags/sec
  • Barcode Scanning (Optional): 1D/2D (SE2707 imager)
  • Connectivity: Bluetooth 5.0 (BLE), USB 3.0 Type-C
  • Battery: 5200mAh removable, 70h standby, ~2.5h continuous UHF use, 4–5h charging
  • Dimensions / Weight: 151 × 76 × 132 mm; 438 g
  • Durability: IP54, 1.5m drop resistance, 1000 tumbles @0.5m, –20 °C to +50 °C operating temp
  • Compatibility: Fits smartphones width 68–80 mm, thickness ≤22 mm
  • Indicators: LED (Power, Work, Bluetooth), buzzer

Description

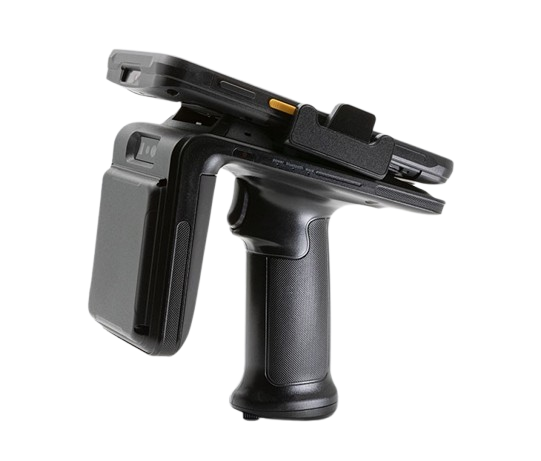

The Chainway R6 is specifically crafted as an integrated solution with smartphones/PDAs. When paired with Android/iOS-based devices, it effortlessly transitions into a sophisticated data collection tool. Equipped with the Impinj E710/R2000 technology, it boasts robust UHF reading and writing capabilities, allowing for a reading distance of more than 31m in outdoor settings. The RFID reader is ergonomically designed for a comfortable grip, easily detachable, and excels in various applications such as power patrol inspection, apparel cycle counting, warehousing, asset management, fleet management, finance, and more.
